IN-F100-A
Body composition Analyzer
User friendly interface and intelligent voice guidance lets you easily take the INBCA test and analyze results. Provide customized consultation with the segmental circumference, segmental lean analysis and segmental fat analysis. You can also check with what kind of body type with INBCA IN-F100 , which is determined by BMI and body fat. Understanding your body type will help you make a better diet and exercise plan, and set realistic, achievable, goals that pave the way to your success.
Advantage
- Human data model (more than 40 set testing data)
- DSM-BIA technology (8 electrodes )
- Multi-language selection, free switching between bilingual screens
- Dual mode for members and visitors
- 8 inches LCD Touch screen
- Thermal printing 58mm ticket
Print report

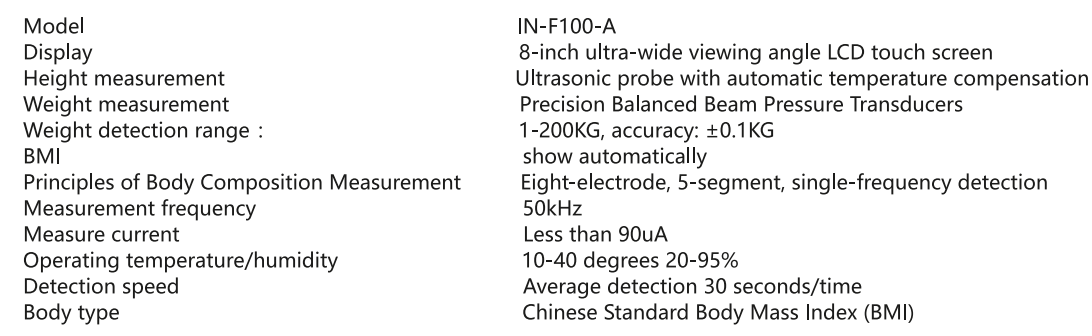

Technical parameter
| Function parameter | |||
| Model | IN-F100-A | ||
| Test Range | Gender: Male/ Female | ||
| Age range: 18-99 years old | |||
| Temperature: 10-40° Moderate 10-85RH |
|||
| Login Method | Swipe IC card | ||
| Display | Led 300 nit | 8 inch，Resolution：1024*768 | |
| Weight | Measurement method： | Weighing with precision balanced beam pressure sensor | |
| Measuring range： | Weight：0.1～200Kg | ||
| Maximum weight： | Less than 200Kg | ||
| Measurement accuracy： | ±0.1Kg | ||
| Fat measurement | Measuring system | 8 electrode | |
| Measuring frequency | 5K/10K/25K/50K/100K/250KHz | ||
| Analysis Project | Body fat, visceral fat, body water, muscle, bone mass | ||
| Material | Plating materials | ||
| Measuring current | Below 90μA | ||
| Resistance | 75.0～1,500.00Ω(0.1ΩUnit） | ||
| Measuring parts | Body, right leg, left leg, right arm, left arm | ||
| Data transmission | WIFI | ||
| OEM/ODM | Yes | ||
| Voltage | 110-220V | ||
| Rated power | 50-60HZ | ||
